TVEC 3 - The sophisticated programming behind the Diamond Strings sample library.
DIVISIONS - The four differently sized sections; Whole, Half, Quarter and Solo.
Whole Division - The greatest number of players per note. (Symphonic)
18 1st and 2nd Violins
10 Violas
9 Cellos
5 Basses
43 Combined String Players comprising the above sections. |
Half Division - About half of the players per note. (Studio)
9 Violins
6 Violas
5 Cellos
3 Basses |
Quarter Division - 4 or less players per note. (Chamber)
4 Violins
4 Violas
3 Cellos
2 Basses |
Solo Division
Solo Violin
Solo Romantic Violin
Solo Viola
Solo Cello
Solo Bass |
SECTIONS - The available types of instruments recorded (divisions).
GUI - The Graphic User Interface that you see when you open an instrument.
GUI TABS - The 3 tabs at the very bottom of the GUI.
TVEC 3 BASIC SETTINGS TAB - This is where you set the basics for TVEC 3. Show me...
EQLive® TAB - A simple global EQ page. You can also set velocity or modwheel brightness on this page. Show me...
VibratoLive® Tab - VibratoLIve® is a very sophisticated way of handling various different vibrato styles for all but
the solo Divisions. Show me...
StartVib Chooser - Choose how you want to control the vibrato at the beginning of a note. Modwheel, velocity or knob setting options.
SusVib Chooser - Choose how you want to control the vibrato of the sustaining part of a note. Modwheel, velocity or knob setting options.
FadeTime Chooser - Choose how you want to control the time between start vibrato and sustain vibrato. Velocity or knob setting options.
StartVib Knob - Determines how much vibrato at the beginning of a note.
SusVib Knob - Determines how much vibrato during the sustain of a note.
FadeTime Knob - Determines how much time between the start vibrato and the sustain vibrato.

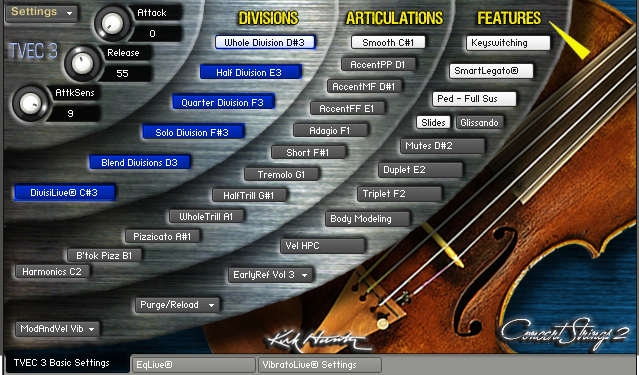

Division Rim
The area of the GUI where you can choose which division(s) you want. (Highlighted in blue)
![](images_manual/divisions_rim.png)

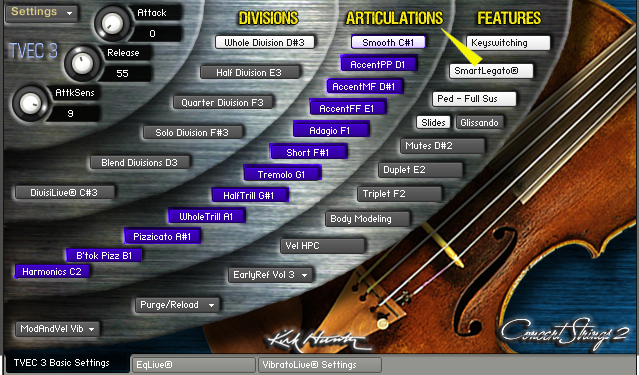

Articulation Rim
The area of the GUI where you can choose which articulation you want. (Highlighted in blue)
![](images_manual/artchooser.png)

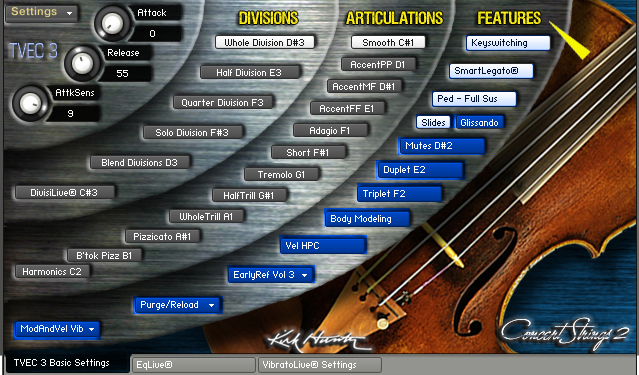

Features Rim
The area of the GUI where you can choose which features you want to access. (Highlighted in blue)
![](images_manual/features_rim.png) |
